Hub

Front Hub & Rear HubJK hub

Feature & Benefit
Joe designed the hubs that overkill all and very different kinds of beatings from the bike, the terrain and you. “The front wheel hub handles relatively even stress, but the rear wheel hub has to meet drive-train forces coming from the chain while maintaining stability of the total weight”, says Joe. You’ll feel the perfect athletic balance between the hub, flange, wheel and spoke that Joe developed for you.

Bill of Material
Front:
Hub Body x 1
End Cap x 2 (70 / 74 / 100 mm)
QR x 1 (70 / 74 / 100 mm)

Rear:
Hub Body x 1
End Cap x 1 (130 / 135 mm)
Freehub: Shimano 10 / 11 speed, Capreo, Campagnolo 10 / 11 speed
QR x 1 (130 / 135 mm)

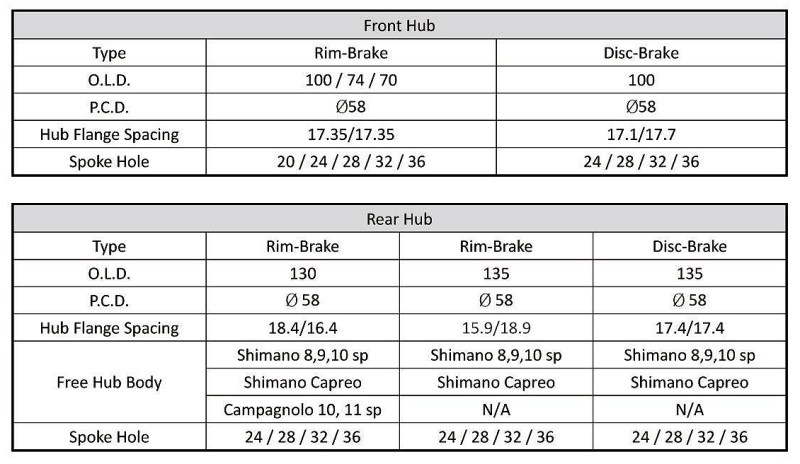

Specification
JK hub specBlack or silver

Weight
Mini Hub F Disc 100 24 H: 159g
Mini Hub F 100 24 H: 156g
Mini Hub F 74 24 H: 138g
Mini Hub F 70 24 H: 134g
Mini Hub R Campy 130 24 H: 302g
Mini Hub R Campy 135 24 H: 306g
Mini Hub R Shimano 10S 130 24 H: 315g
Mini Hub R Shimano 10S 135 24 H: 316g
Mini Hub R Capreo 130 24 H: 330g
Mini Hub R Capreo 135 24 H: 333g
Mini Hub R Shimano 11S 130 24 H: 314g
Mini Hub R Shimano 11S 135 24 H: 318g
Mini Hub R Capreo Disc 135 24 H: 342g
Mini Hub R Capreo Disc 135 24 H: 324g

Packing Detail
17 x 9 x 8.2 cm
