Carbon Wheelset

Feature & Benefit
“There’s gotta be a better way”, Joe ponders. The structural trigonometry and geometry change as the wheel diameter changes…….“Why do designs of wheels for road bikes the same as mini-velos’ wheels?”, Joe ponders again. Take the C38C in 349 as an example……Joe goes on, “smaller wheels have different needs……it has less time for braking heat dissipation, the hub is too wide for the shorter rim diameter and the spoke angle for road bikes is too weak to maintain general payload on small wheels like 349. I designed the C38C using composite materials to enhance heat-dissipation, I beefed up the hub by shrinking the width and added more crosses to the spoke for additional strength”. “I always push myself on product design rules and limitations…..I mean…..my customers get the optimal combination of performance, weigh and quality from my products”.

Bill of Material
Brake Pad x 4
Front Hub + QR x 1
Rear Hub + QR x 1
Rim x 2
Rim Tape x 2
Spoke + Nipple (2 wheels)

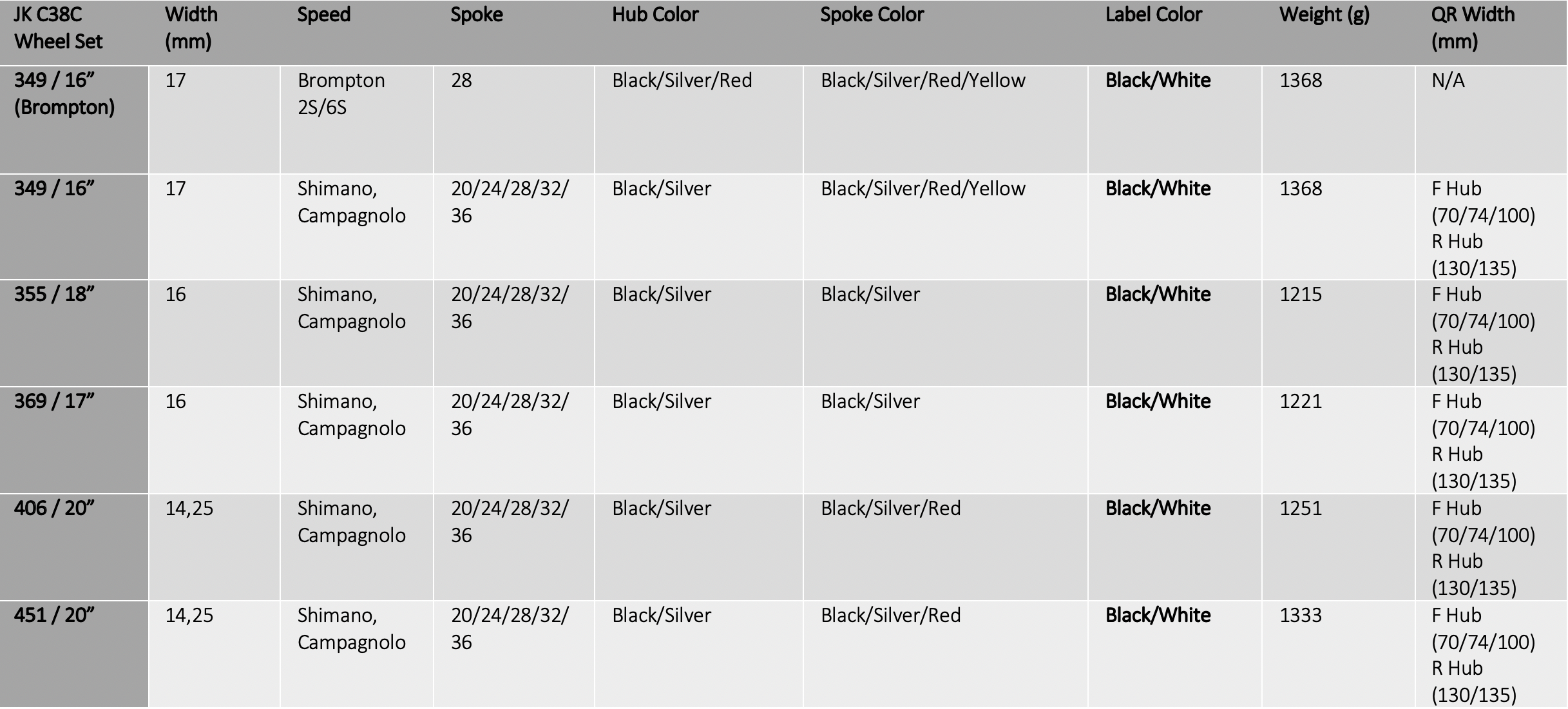

Specification

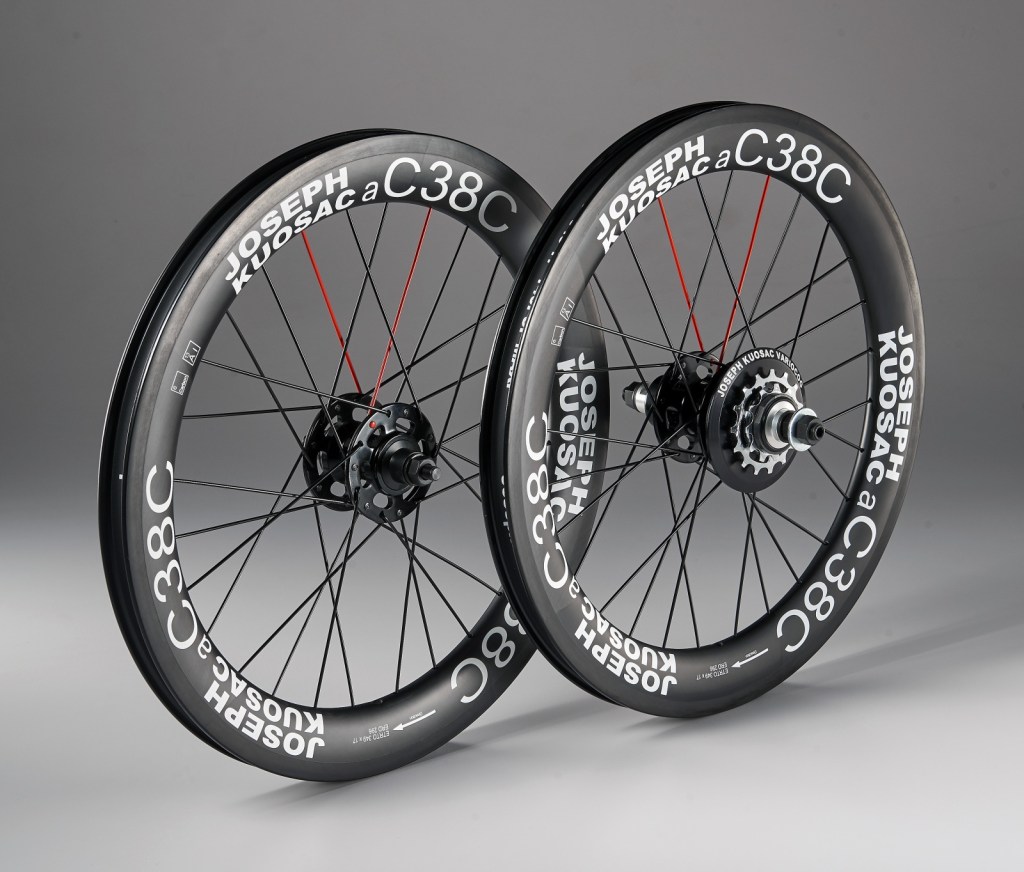

Carbon rim (C38C): 349 x 17, 355 x 16, 369 x 16, 406 x 14, 406 x 25, 451 x 14, 451 x 25 mm
Mini Hub Front and Rear wheel in Black, 2-speed freehub
(compatible with Brompton)
Black Spoke: 20 / 24 / 28 / 32 / 36
Rim Tape (2pcs) and Brake Pads (4pcs) included
QR: Front Hub (70 / 74 / 100), Rear Hub (130 / 135)
Lacing F/R Spoke Color: (Black / Silver), 28H Hub Color: (black / Silver) (with QR), 24H Hub Color: Black

Weight (all components combined)

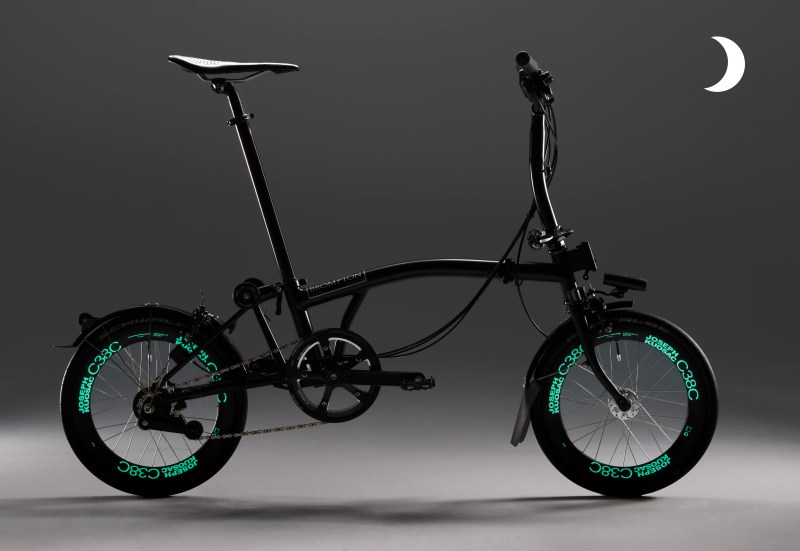

349: 1368g (for Brompton)
355: 1215g (for Birdy)
369: 1221g
406: 1251g
451: 1333g

VARIOCOG
